We supply Soft Seat Butterfly Valves have a centric disc construction, a single piece body and an integrally molded seat. It is available in different materials of construction. The double D locking technology delivers positive disc to seat location with maximum strength. The edge of the disc is machined and polished 360 degree to assure tight shutoff of the valve.
We also offer Integrally Moulded Butterfly Valves in gear type. The Gear Operator ensure smoother functioning of the heavy duty butterfly valves. The gear operators can withstand adverse conditions and are self lubricating.
Body: Cast Iron / S.G. Iron / Carbon steel
Disc: S.G. Iron / SS304 / SS316 / Carbon Steel
Product range: DN32MM to DN1200MM
Pressure rating: PN10 / PN16 / PN20 / PN25
End connection: Wafer / Lug / Double Flanged type

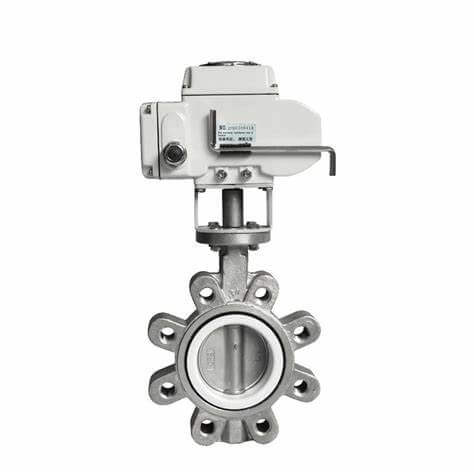

We offer Motorized Butterfly Valve comprise of a butterfly valve that is mounted by an electrical quarter turn actuator with manual override. Adhering to the function of a Hand Operated Butterfly Valve, these are ON/OFF type valves.
Mounting of the actuator are specially designed low torque Butterfly Valves which enables long life of the actuator as the load on the electric motor is resisted by the easy opeing and closing of the disc.
Body: Cast Iron / S.G. Iron / Carbon steel
Disc: S.G. Iron / SS304 / SS316 / Carbon Steel
Product range: DN32MM to DN1200MM
Pressure rating: PN10 / PN16 / PN20 / PN25
End connection: Wafer / Lug / Double Flanged type

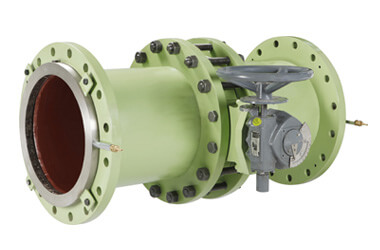

Balancing Valves are used to control the flow of water and to insure that the chilled water system is balanced. It is used to modulate the fluid flow before it reaches the unit. Large DIA Balancing Valve is the solution for large size HVAC and Cooling plants.
Features of our Balancing Valves:
Multi-turn adjustment range for maximum controllability.
Ease of installation as pressure differential read – out ports are on both sides of the valve body.
Tamper proof memory stop for ease of returning to balancing set point.
Flow coefficients are calculated using CFD simulations through softwae to evaluate the flow rate.
Product Range: DN300MM to DN1000MM
Pressure rating: PN10 / PN16 / PN20 / PN25

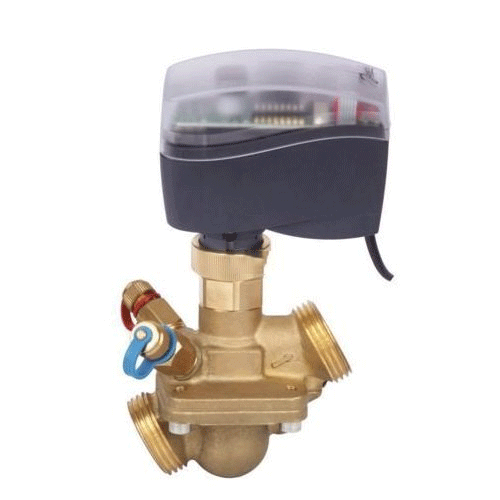

Independent Control Valve is a multifunctional valve as it is used in heating and chilled water systems to control and regulate the flow. It is also a differential pressure control valve. This implied that the PICV acts as a replacement to three different valves that is a two-way valve. a regulating valve and a valve to control differential pressure. These valves instantaneously self balances itself at all the points in the operation even when there is variation in the pressure differential.
Salient Features of PICV Valves:
Reduction in energy consumption.
Improves the efficiency of the system due to the facility to optimise the pump speed.
More precision in control due to long strokes of the actuators.
Easy commissioning.
Product Range: DN15 to DN40 : Forged Brass with screw ends.
DN50 to DN150 : Cast Iron with flanged ends.

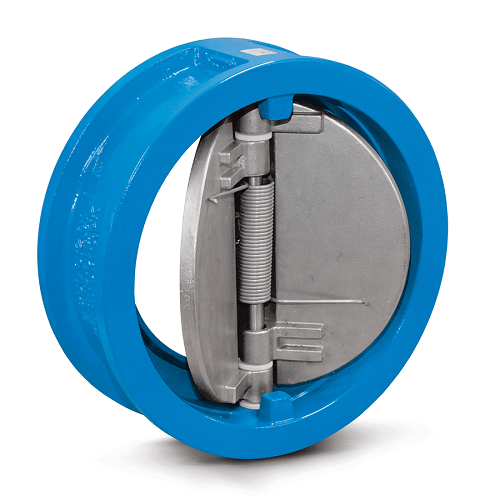

Dual Plate Check Valves are light and compact wafer type check valves that are designed for HVAC and General service applications. It consist of two spring – loaded plates close when the flow decreases, without the necessity of reverse flow.
Salient features of Dual Plate Check Valves.
Spring loading on the plates assists in the closing of the valve which ensures tight sealing and it minimizes slamming.
The valve closes when the velocity of the flow is reduced to zero, before the flow gets reversed. Hence, water hammer is eliminated.
It is very flexible in installation. Due to the spring action, the valve can be installed both horizontally and vertically.
Body: Cast Iron / S.G. Iron / Carbon Steel
Flap: S.G. Iron / SS304 / SS316 / Carbon Steel
Product range: DN40MM to DN1000 MM
Pressure rating: PN10 / PN16 / PN20 / PN25
End connections: Wafer / Lug / Double Flanged Type

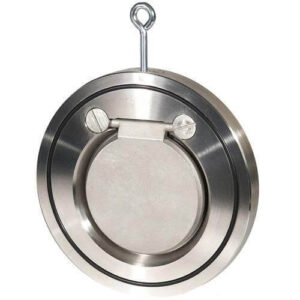

Single Plate Wafer Check Valves are used in pipelines to prevent backflow of the fluid. These valves are fast acting closing, thereby maximizing protection to prevent the adverse effect of the back flow. Opening and closing of the valve takes place at an extremely low pressure difference over the valve disc. The connection of the eccentric disc shaft with the soft seat embedded in the body ensures a positive shut off the returning medium.
Salient Features of wafer Type Check Valves are:
Wafer Type Check Valve weight much lesser as compared to the conventional flanged end swing check valves.
Due to short overall length it can be easily installed in horizontal or in vertical pipeline without any special pipe support.
The seat is fitted in the body in order to prevent contact with the flow, which results in longer life of the seat.
It has minimum head loss due to large size of the orifice hence saves energy as well.
Body type: CI / SGI / CS
Flat: SGI / SS304 / SS316 / MS /EN3 / CS / AI-Bronze
Pressure Rating: PN10 / PN16 / PN20 / PN25
Size Range: DN40MM to DN1000MM

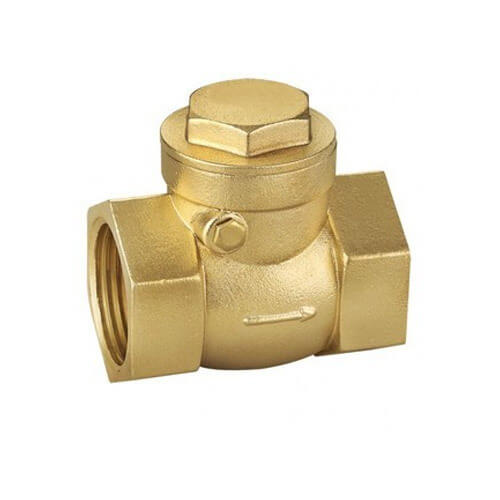

The Horizontal Forged Brass Check Valves can be installed vertically as well as horizontally. These valves come with a screwed bonnet and metal-to-metal seating featuring one-piece swing disc designed for low pressure drop. As typical non return valves, these allow flow in one direction and automatically close when the direction of flow is reversed.
Product Range:
Size: DN15MM to DN50MM
Body: Forged Brass
Spring: Forged Brass
Bonnet: Forged Brass
O-Ring: Nitrile Rubber

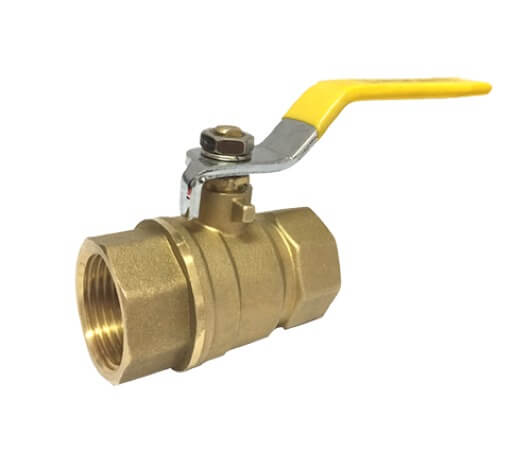

Forged Brass Ball Valves allows the user to open or shut the flow of the fluid passing through it, with a quarter-turn of the valve handle. Ball valves are used essentially where operational requirement is ON/OFF. The 90-degree rotation of the handle does the function of opening and closing of the valve. To make sure that the seating stress is uniform, the seat is matching to the ball. Acorn nuts protect the stem in a much better way in comparission of the other nuts. The Ball Valves have screwed ends confirming to BS 21/IS554.
The Ball Valves have replaced the used of Gate Valve, as they are easy to install and are more sturdy and compact.Product range: DN 08MM to DN 100MM
Body / Ball / Stem: Forged Brass
Forged Brass Material Confirming to IS 6912 Gr/ FIB (Cu>57%; Pb>3%)
Seat: PTFE
Nut: Acorn Nut
Pressure Rating: PN25

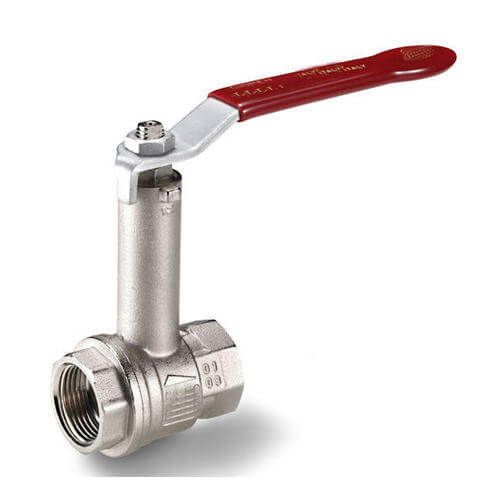

Estended Stem Ball Valves are an extension of the normal ball valve. The valve is provided with an extended stem to make the valve easier to operate in places where the valve is insulated. By virtue of the extended stem, the operator does not have to tear the insulation to operate the valve as the extended stem attached with the handle always comes out of the insulation to permit the opening and closing of the valve accordingly.
Extended Stem Ball Valves are widely used in the HVAC as well as Pharmaceutical Industries.
Product Range: DN15 to DN50MM
Body: Forged Brass
Ball: Forged Brass
Stem: Forged Brass
Forged Brass Material confirming to IS6912 GR.FLB (Cu>57%; Pb<3%)
Seat: PTFE
Pressure Rating: PN25

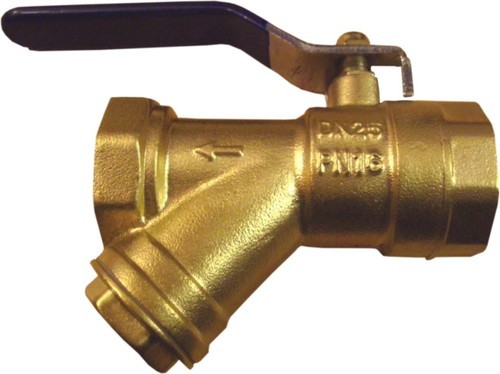

Ball Valve with Strainers are used HVAC and Plumbling sectors. These valves are extension of Ball Valves. The strainer performs the function of removing the particulates from the fluids passing through it via the flitering element intesecting the main channel. The strainer consists of a cyclindrical mesh that protects the valuable downstream equipment’s such as pumps, regulators etc from being damaged from the contaminants.
Product Range: DN15 to DN50
Body: Forged Brass
Ball: Forged Brass
Stem: Forged Brass
Seat: PTFE
Pressure Rating: PN25

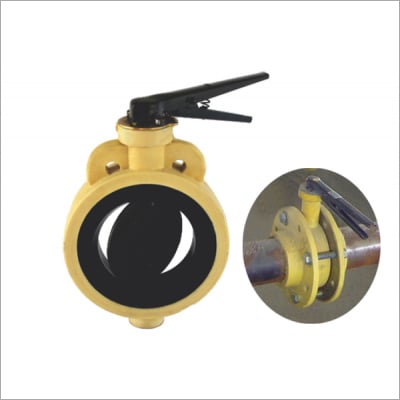

Pre-Insulated Valves reduce the cost and man power incurred during the insulation of the valves done on site. The insulation is done using integrally reinforced insulation of rigid polyurathene of 60-70 kg/m3 that aligns exactly with the outline of the valve to aesthetically appear in shape of valves only & avoids any requirement of external cladding. The thickness of insulation is 20MM upto valves with size 300MM.
We offer Pre-Insulation in all our product ranges. This implies all Butterfly, Check valves & strainers.

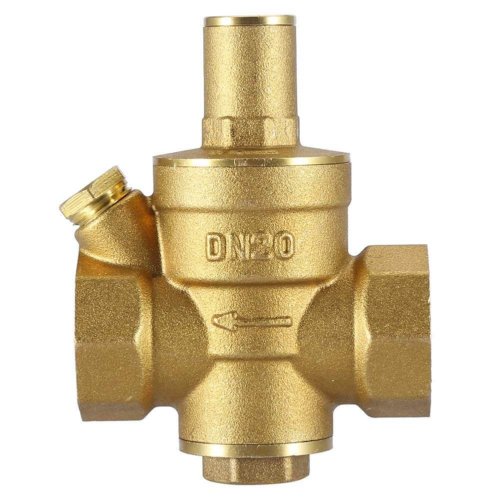

Pressure Reducing valves are useful for reduction of water pressure and are used in high-rise buildings and various industries to save the equipment from getting damaged by high fluid pressure.
FEATURES: Direct acting type, does not need external sensing line.
Exernally piloted
In the PRV te test point is specially designed in the inlet of the Pressure Guage.
A needle type Pressure Gauge is used while recording the pressure.
Cost saving by eleminating multiple pressure guages.Preduct Range: DN5 to DN50
Pressure Rating: Maximum inlet – 350 PSIG, Maximum Outlet – 5 PSIG
Working tempereture: OC=<t=<80c

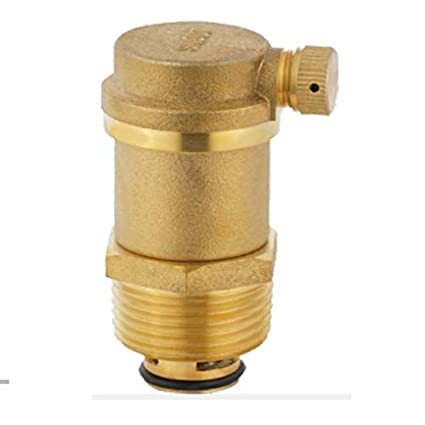

Long term efficiency and performance of the vent movement is ensured by the valve design features.
The seal system is designed to withstand vibrations, therefore it is unaffected by any external vibrations.
Auto Airvent prevents Corrosion, Dry Running of the pump, Airlocks in radiators and resulting flow noises.
Product Range: DN10 to DN25MM
Body: Forged Brass
Float: Nylon
Ends: Screwed Ends
Pressure Rating: PN10 / PN16 / PN20 / PN25

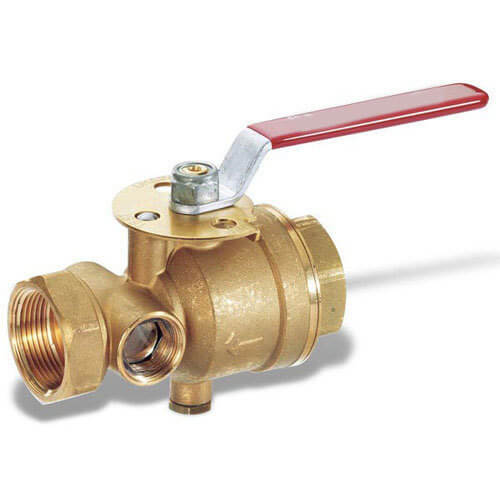

Test and Drain Valve is a unique and very efficient product for the sprinkler systems. It provides both the test function and the express drain function for a wet fire sprinkler system. It is a compact three position Ball Valve in which the position are OFF, TEST & DRAIN.
Salient Features of Test & Drain Valve:
Integral sight Glass to inspect the flow and quality of water.
Solves functions of multiple valves by performing both the test ad drain functions.
The filter cartridge in Test & Drain Valve is made from Brass instead of Nylon.
This enables the valve to withstand extremely high temperatures, as the temerature tolerance of Brass is mich higher than Nylon.
Product Range: DN25MM to DN50MM
Body: Forged Brass
Ends: Screwed End
Filter Cartridge: Forged Brass

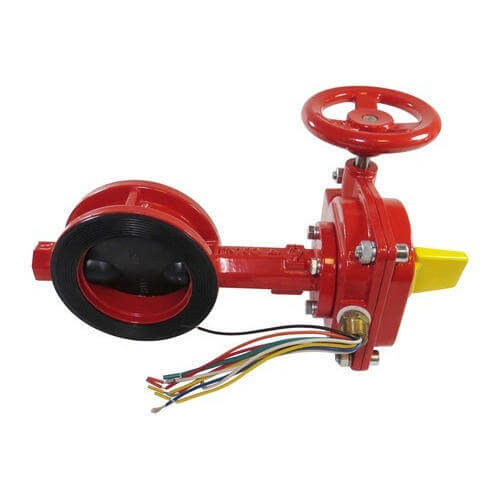

Butterfly Valve with Tamper Proof Switch offers precision flow control of fluids and gas. This valve is suitable for both indoor and outdoor use and con also be used as a control valve in fire protection systems.
Features of Butterfly Valve with Tamper proof Switch are:
A fitted tamper switch allows Butterfly Valve to activate a local alarm bell or horn when the valve comes to a partial or complete close.
The bright yellow position indicator offers an at-a-glance indication of the valve’s position.
When closed, the down-flow end of the pipe can be replaced without draining the entire system.
Dual supervisory switches and wiring make it easy to connect the Butterfly Valve to a fire control panel.
Product Range: DN40MM to DN600MM
Y-Type Strainers are used to filter out the dirt, rust and other debris in the water flow protecting the piping equipment such as pumps, meters, valves and other equipment in the piping system. Y-Strainers are equipped with a retainer cap that allows easy access to the stainless steel screen for cleaning. Large Screening area increases the efficiency of the Y-Strainer.
Product Range:
DN15MM to DN40MM: Forged Brass with Screwed ends
DN40MM to DN350MM: Cast Iron Flanged Ends
Pressure Rating: PN10 / PN16 / PN20 / PN25
